Overview

Specifications

Travel System
Travel motors	KYB, Japan;
Support roller quantities	2×5
Carrier roller quantities	2×1
Travel shoes	2×35
Travel speed	2.7/4.4(km/h)
Drawbar pulling force	35kN
Gradeability	58%(30°)
Track shoes thickness	6mm
Engine
Model	YANMAR 4TNV88
Type	Direct injection, water cooled, natural intake
No. of cylinder	4
Displacement	2.19L
Power output	25.2kw/2200rpm
Max. torque	142N.m/1200rpm
Hydraulic System
Pump	KYB, Japan
Type	axial piston pump+ gear pump
Max. discharge flow	128 (L/min)
Max. discharge pressure
Boom, arm and bucket	24.5 MPa
Travel circuit	15.7 MPa
Swing circuit	15.7 MPa
Control circuit	3.9 MPa
Pilot control pump	Gear type
Main control valves	KYB, Japan
Oil cooler	Air cooled type
Cab & Electrical System
Cab	All-weather, sound-suppressed Cab and equipped with a heavy, insulatedFloor Mat,Front Window can be opened and slided;adjustable Seat; LED display, Automatic monitoring, display
Voltage	12V
Batteries	1X12V
Battery capacity	80Ah
Boom, Arm ＆ Bucket
Boom cylinder	Φ90×Φ50×S552-L915
Arm cylinder	Φ85×Φ50×S580-L920
Bucket cylinder	Φ70×Φ45×S443-L745
Swing System
Swing motor	KYB, Japan
Swing motor type	Axial-piston motor
Brake	Hydraulic oil released
Parking brake	Hydraulic disc brake
Swing speed	12 r/min
Refilling Capacity & lubrication
Fuel tank	82 L
Cooling system	12 L
Engine oil	6L
Hydraulic oil tank	59L Tank Oil Level / 85L Hydraulic System
Bucket
Bucket capacity	0.17m³ (SAE)
Bucket Capacity scope	0.069-0.24m³
Number of bucket teeth	4
Bucket width	640 mm
Working ranges
Boom length	2650mm
Max. digging height	5030mm
Max. dumping height	3390mm
Max. digging depth	2545mm
Max. vertical digging depth	5523mm
Max. digging distance	5413mm
Max. digging radius at ground level	2406mm
Digging Force (ISO6015)
Arm length	1450mm
Bucket digging force	23.7 KN
Arm digging force	21.6 KN
Overall Dimensions
Overall length	5385mm
Ground contact length	3512mm
Overall height(to top of boom)	1783mm
Overall width	1750mm
Overall height(to top of cab)	2455mm
Counter weight ground clearance	600mm
Min Ground clearance	350mm
Tail swing radius	1561mm
Track grounding length	1710mm
Track length	2190mm
Track gauge	1400mm
Track width	1750mm
Track Shoe width	350mm
Counter weight height	850mm
Revolving frame width	1600mm
Distance from swing center to tail	1561m
Operating Weight and Ground Pressure
Operating weight	4200 Kg
Ground pressure	36 KPa

Features

There is currently no content available.

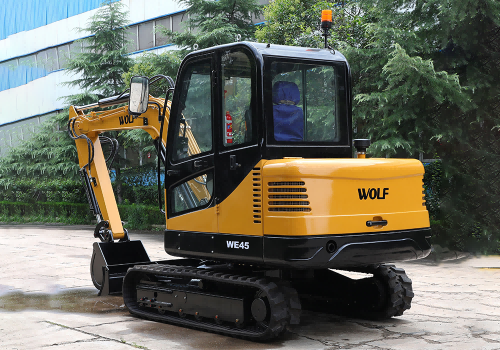

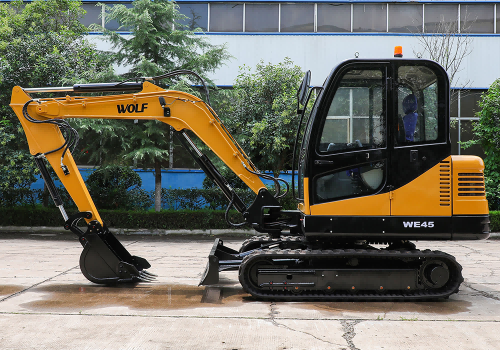

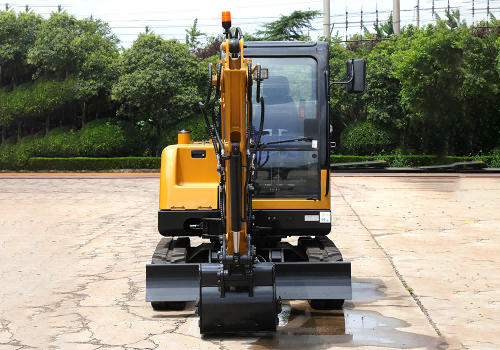

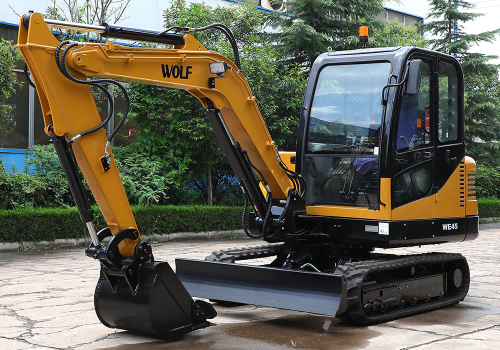

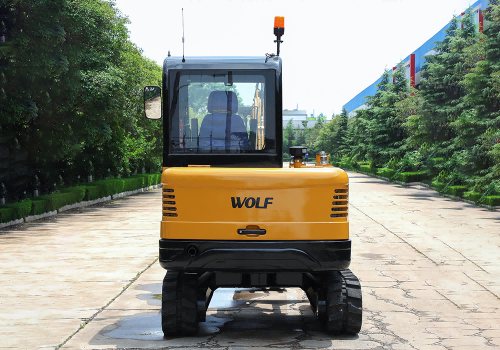

WE45

Excavator
