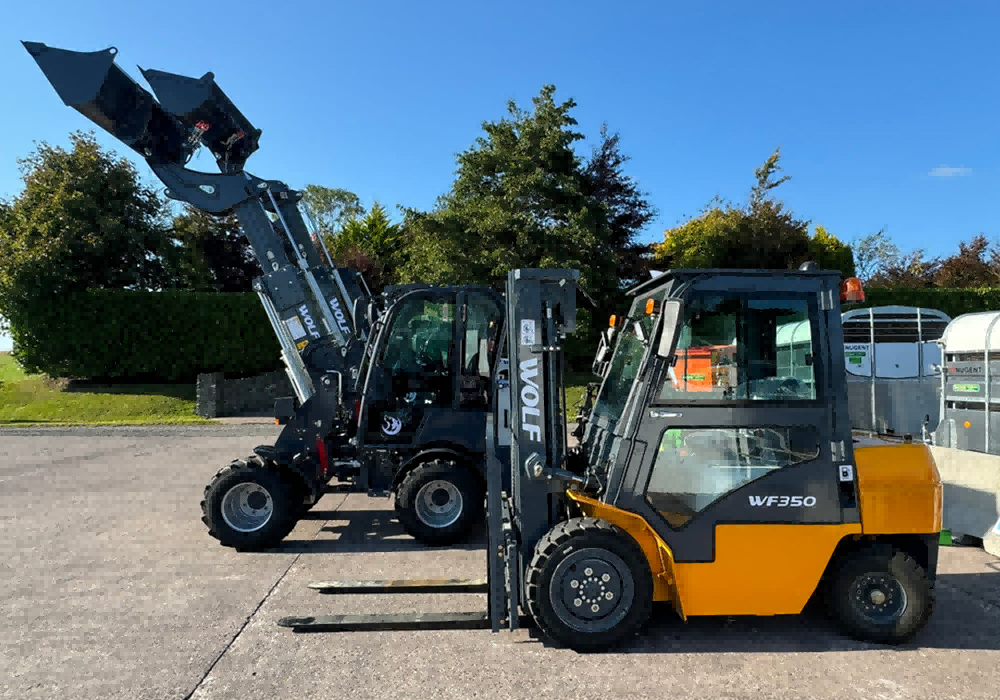

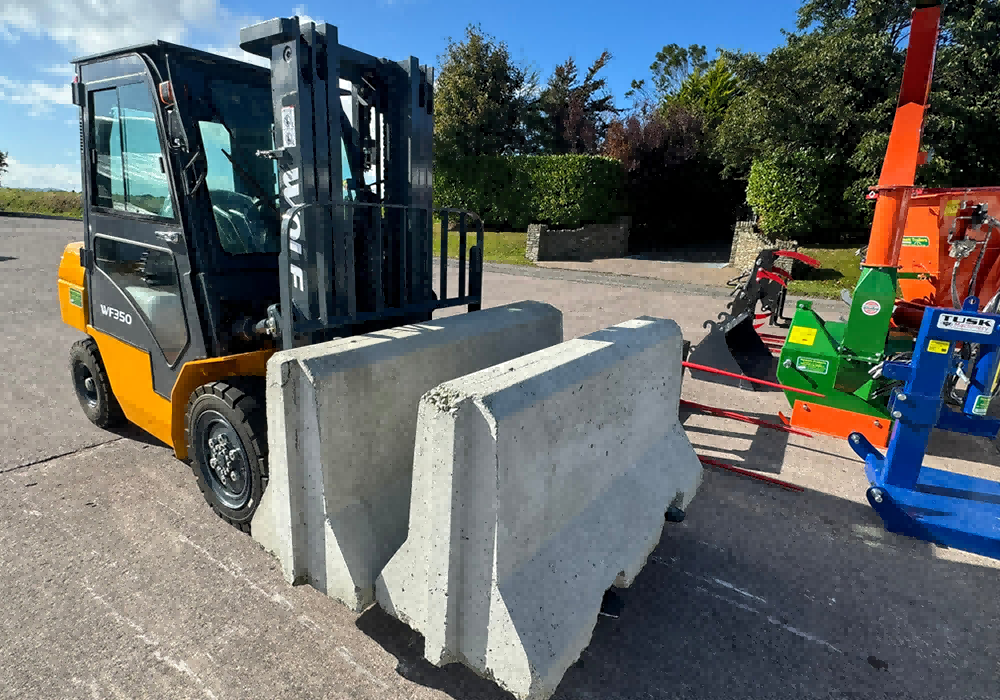

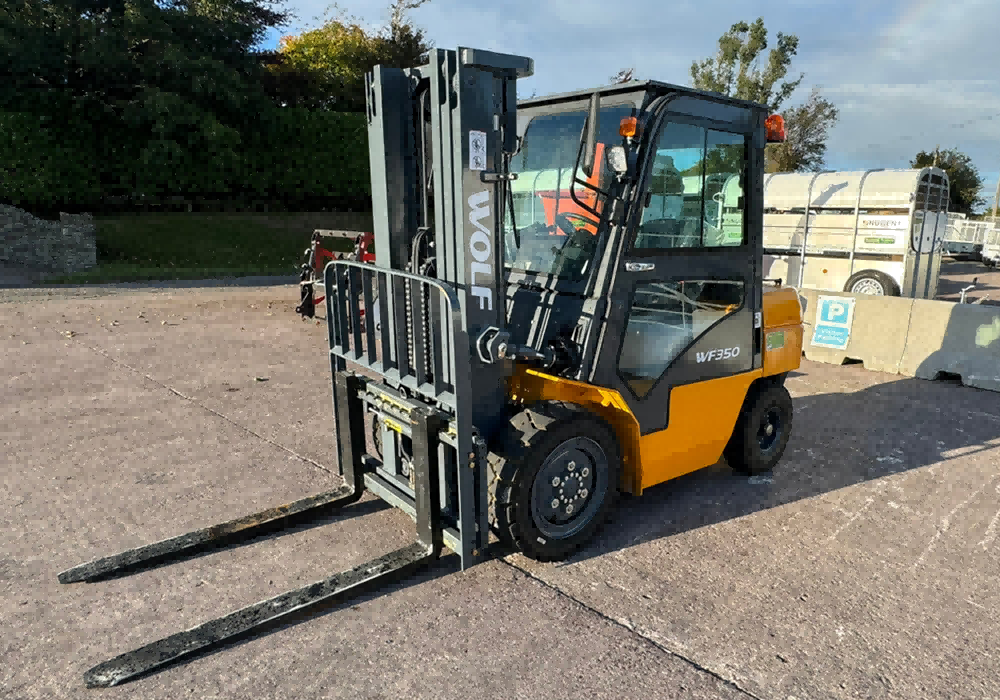

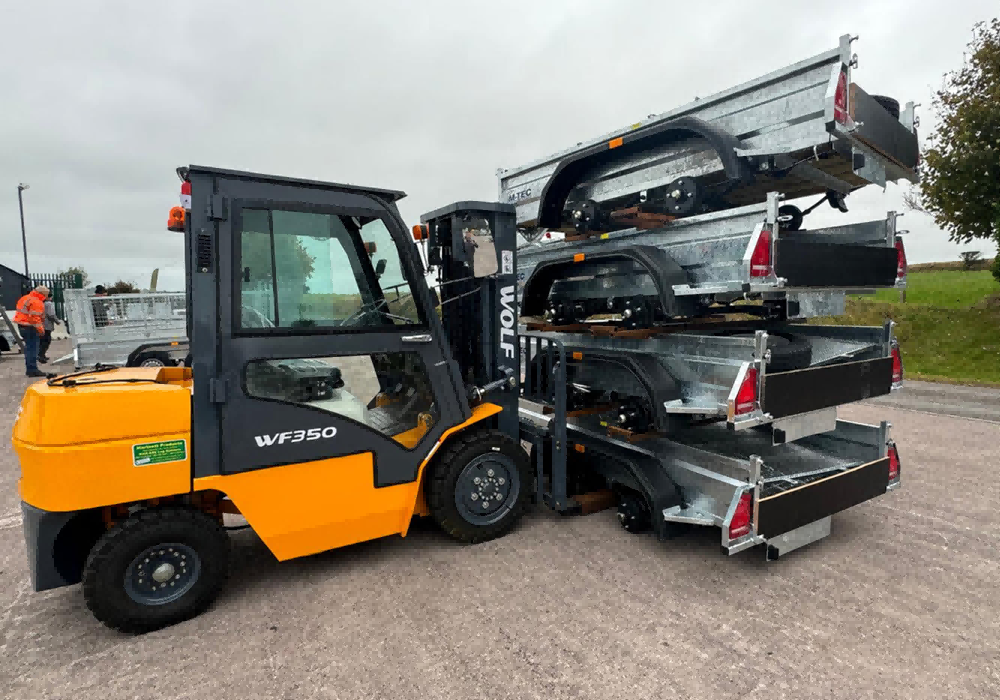

Fuel forklift

Forklift

KeySpecs

Vated Capacity:: 3867×1000×1185
Service Weight:: Xinchai 485~4DF3
Max.Lift Height:: 32~85

Request A Quote

Overview

Specifications

Specification			WF150	WF200	WF250	WF300	WF350	WF400	WF500	WF600	WF700	WF1000
Characteristics
Fuel type		-	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Load capacity		kg	1500	2000	2500	3000	3500	4000	5000	6000	7000	10000
Load center		mm	500	500	500	500	500	500	600	600	600	600
Lift height		mm	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
Full free lift height		mm	135	100	100	100	100	100	135	210	220	220
Fork dimension		mm	1070×122×40	1070×122×40	1070×122×40	1070×125×45	1070×125×50	1070×150×45	1220×150×55	1220×150×60	1220×150×65	1220×175×80
Mast tilting angle	Front/Rear	Deg.	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12
Min. turning radius		mm	2280	2190	2240	2400	2450	2620	3050	3320	3380	3950
Groud clearance		mm	120	120	120	135	135	135	160	200	200	250
Overhead guard height		mm	2070	2160	2160	2165	2165	2160	2350	2460	2460	2600
Front overhang		mm	425	450	450	490	490	495	560	615	625	710
Performance
Max. travel speed	Full load	km/h	16	19	19	20	20	20	19	26	26	25
Max. lift speed	Full load	mm/s	550	500	500	480	480	330	400	400	400	310
Max. traction power	Full load	KN	16	17	18	20	22	18	22	51.4	51.4	57
Dimensions
Max. gradeability		%	20	20	20	20	20	20	20	20	20	20
Total length	With fork	mm	3195	3600	3650	3770	3770	4105	4530	4770	4770	6700
Total length	Without fork	mm	2275	2530	2580	2700	2700	3035	3310	3550	3550	5480
Total width		mm	1070	1160	1160	1225	1225	1225	1480	2235	2235	2235
Mast extended height		mm	4030	4220	4220	4265	4265	4250	4270	4380	4380	4297
Mast lowered height		mm	1995	2060	2060	2060	2060	2185	2240	2500	2500	2850
Chassis
Tyres	Front	-	6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	28x9-15-12PR	28x9-15PR	300-15-18PR	8.25-15-14PR	8.25-15-14PR	9.00-20-14PR
	Rear	-	5.00-8-8PR	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	8.25-15-14PR	8.25-15-14PR	9.00-20-14PR
Wheelbase		mm	1410	1600	1600	1700	1700	1900	2200	2250	2250	2800
Tread	Front/Rear	mm	890/920	970/970	970/970	1000/970	1000/970	1000/970	1180/1190	1470/1700	1470/1700	1600/1700
Service weight		Kg	2890	3530	3880	4350	4780	5000	6700	8640	9340	12180
Drive
Battery	Model	V/Ah	12/100	12/80	12/80	12/80	12/80	12/80	(12/80)×2	(12/80)×2	(12/80)×2	(12/100)×2
Motor	Power	-	Xinchai 485	Xinchai 490	Xinchai 490	Xinchai 490	Xinchai 490	Xinchai 495	XINCHAI 4D35	XICHAI 4DF3	XICHAI 4DF3	XICHAI 4DF3

Features

There is currently no content available.
